BRSBENT SQ®
Activated Bentonite
Premium drilling fluid material for HDD, slurry TBM and deep foundation applications
What BRSBENT SQ Is
BRSBENT SQ is a versatile activated bentonite with strong thixotropic properties, ideal for all freshwater based drilling systems. It suits slurry TBM, deep foundations, and HDD projects, with adjustable rheology for optimal performance in diverse drilling applications.
Main Functions
- Ensures borehole / trench stability
- Builds impermeable membrane / filter cake
- Promotes smooth circulation
- Facilitates efficient separation
Key Features & Advantages
How BRSBENT SQ Is Used
Check the water quality (pH and EC) and pretreat with pH CONTROL® if needed. Add the calculated amount of selected BRSBENT® SQ slowly into the mixer. Mix the slurry intensely for at least 30 minutes. Hydrate the slurry in the activation tanks with circulation for 4 hours to achieve optimum rheology.
Dosage
40–60 kg/m³ of water
Mixing Procedure
Check the water quality (pH and EC) and pretreat with pH CONTROL® if needed.
Add the calculated amount of selected BRSBENT® SQ slowly into the mixer.
Mix the slurry intensely for at least 30 minutes.
Hydrate the slurry in the activation tanks with circulation for 4 hours to achieve optimum rheology.

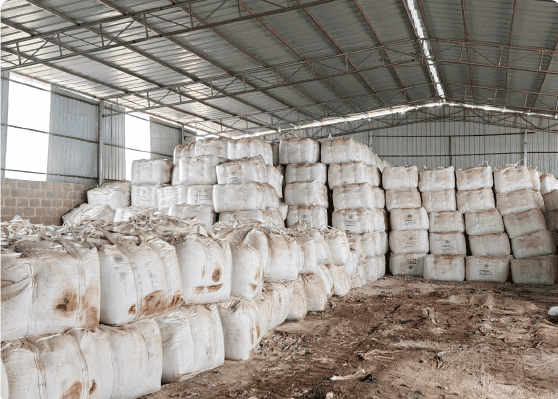

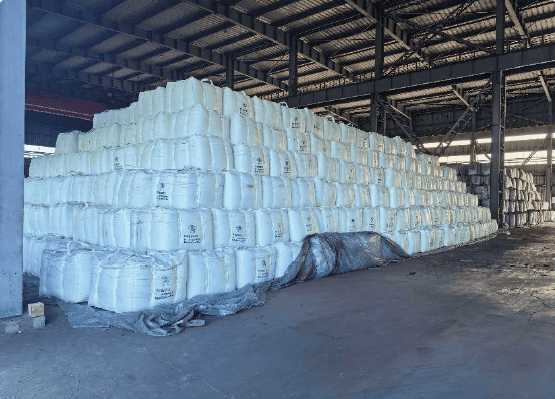

How It's Supplied
Keep the product in its original packaging at normal temperature and protect it from humidity. A loss of rheological and filtrate properties may result from inadequate storage.

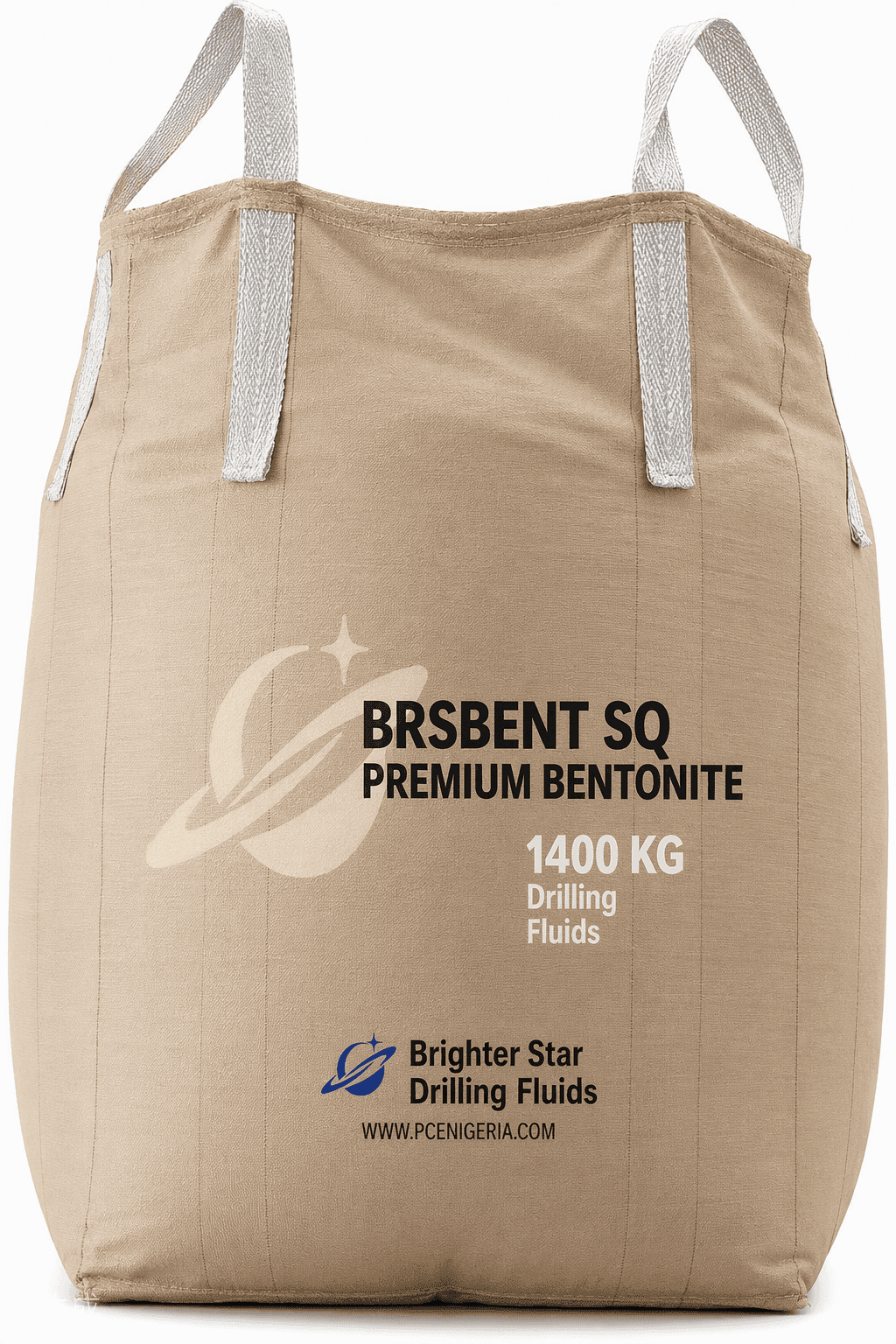

Packaging
25 kg
Minimum Order
22 ± 2 MT
Technical Data Sheet
Tested at 50 g/l · Mixer type GS-3S · Rotation speed 1,100 rpm · Mixing time 5 minutes · Water: tap water · Swelling time: 4 hours.
Product Specification
| Fluid Property | Unit | Value |
|---|---|---|
| Marsh Viscosity | sec | ≥ 100 |
| Filtrate, 30 Minutes | ml | ≤ 15 |
| Decantation After 24 Hours | % | ≤ 0.5 |
| Six-speed Rotational Viscometer | mPa·s | ≥ 80 |
Physical Properties
| Property | Typical Value |
|---|---|
| Colour | Depends on the raw clay |
| Specific Weight | Approx. 2.6 g/cm³ |
| Bulk Density | 900 – 1,100 kg/m³ |
| Swelling Volume, ASTM D5890 | ≥ 25 ml / 2 g |
| WSA (75 μm), API 13B-1 | ≤ 1% |
| Moisture, API 13B-1 | ≤ 13% |
Handle With Confidence
Caution: Eyes: Chemical safety goggles (OSHA 29 CFR 1910.133 or EN 166); Skin / hands: Impervious rubber gloves (nitrile or latex), protective clothing; Respiratory: NIOSH/MSHA-approved dust mask (EN 149 P1/P2) in dusty conditions; Footwear: Safety shoes
GHS Hazard Classification: Not classified as a hazardous substance under GHS / OSHA Hazard Communication Standards. The product is a non combustible mineral no fire or dust explosion hazard. In practice, the hazards are: mild dust irritation to respiratory tract, skin and eyes; a slip hazard from spilled or wetted powder, which forms an extremely slippery film; and naturally occurring quartz content (1–2%), so prolonged inhalation of dust should be avoided.
Quick PPE Reference
| Protection | Recommended |
|---|---|
| PPE Item 1 | Eyes: Chemical safety goggles (OSHA 29 CFR 1910.133 or EN 166) |
| PPE Item 2 | Skin / hands: Impervious rubber gloves (nitrile or latex), protective clothing |
| PPE Item 3 | Respiratory: NIOSH/MSHA-approved dust mask (EN 149 P1/P2) in dusty conditions |
| PPE Item 4 | Footwear: Safety shoes |
